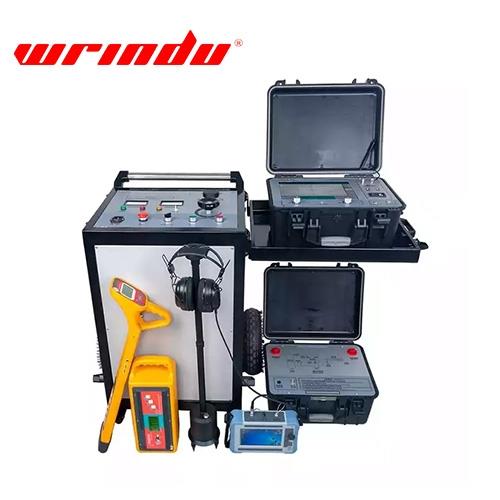

"The image is Wrindu RDCD-?System Cable Fault Testing Equipment."Underground power cable faults remain one of the most common risks affecting power system reliability, safety, and operational continuity. For utilities, industrial facilities, and maintenance contractors, understanding why cable faults occur and how to detect them accurately is essential for reducing downtime and preventing secondary damage.

Major Causes of Underground Power Cable Faults

1. Mechanical Damage

Mechanical damage is one of the leading causes of underground cable failures. In many cases, the damage does not trigger an immediate fault but gradually develops over time.

Common sources include:

• Damage during installation, such as excessive pulling force or bending

• External impacts from construction activities near cable routes

• Long-term vibration from traffic loads

• Soil settlement causing joint stress or conductor breakage

• Sheath abrasion at ducts, supports, or pipe entries

Even minor mechanical defects can later evolve into high-resistance or flashover faults.

2. Insulation Moisture Ingress

Moisture significantly reduces insulation strength and accelerates aging.

Typical causes include:

• Poor sealing of cable joints or terminations

• Manufacturing defects such as pinholes in metal sheaths

• External corrosion or puncture of the cable sheath

Moisture ingress is a primary cause of unbreakable high-resistance faults in medium- and high-voltage cables.

3. Insulation Aging and Thermal Degradation

Insulation deterioration occurs due to:

• Internal voids and impurities under electric field stress

• Long-term overloading and overheating

• Poor ventilation in cable ducts

• Oil loss in oil-paper insulated cables

• Operation beyond designed service life

Aging insulation often leads to breakdown faults during DC withstand testing.

4. Overvoltage Stress

Overvoltage can trigger immediate insulation failure when latent defects exist.

Main sources include:

• Lightning-induced atmospheric overvoltages

• Switching overvoltages within the power system

5. Design and Manufacturing Defects

Improper design and manufacturing of cable joints or terminations may cause:

• Uneven electric field distribution

• Incompatible insulation materials

• Non-standard production processes

These defects often result in early-stage insulation breakdown.

Classification of Cable Faults by Electrical Characteristics1. By Material Nature

• Series Faults: Conductor or sheath breaks (open circuits)

• Parallel Faults: Insulation failure causing short-circuits or ground faults

• Complex Faults: Combined conductor and insulation damage

By Fault Point Insulation Resistance

Fault Type	Key Characteristics
Open-Circuit Fault	Infinite insulation resistance, conductor discontinuity
Low-Resistance Fault	Insulation resistance < 10Z0
High-Resistance Fault	Insulation resistance > 10Z0 (common in 6–10 kV cables)
Flashover Fault	Normal IR at rest, breakdown under high voltage

High-resistance faults account for over 80% of medium-voltage cable failures in the field.

1. Classification by Operating BehaviorExplosion Faults

• Severe insulation destruction

• Obvious external damage

• Easy acoustic location

2. Breakdown Faults

• Occur during DC withstand tests

• Usually high-resistance grounding

• Difficult to locate without pulse or return-path methods

3. Running Faults

• Occur during normal operation

• Often intermittent or unstable

• Commonly caused by aging or environmental corrosion

4. Common Cable Fault Detection MethodsLow-Resistance Faults

• Insulation resistance testing

• Time Domain Reflectometry (TDR)

5. High-Resistance Faults

• Murray Bridge and Glaser Bridge methods

• Secondary pulse and triple-pulse methods

• Arc-stabilization techniques for moisture-related faults

6. Open-Circuit Faults

• Conductor continuity testing

• TDR waveform analysis

7. Flashover and Intermittent Faults

• Partial discharge testing

• Acoustic-magnetic synchronous positioning

8. Sheath Faults

• DC sheath insulation testing

• DC withstand voltage testing

Advanced Cable Fault Testing Equipment for Accurate Location

Modern cable fault diagnosis requires high-precision, field-ready instruments. The Wrindu RDCD-II-503B Cable Fault Tester is designed for efficient fault location in complex underground environments.

Key Features:

• Acoustic-magnetic synchronous positioning

• Automatic time-difference calculation

• Advanced noise filtering technology

• Adjustable gain and trigger parameters

• 5-inch high-brightness touch screen

• Built-in lithium battery for long field operations

• Lightweight and portable design

This technology reduces operator dependency and improves accuracy in high-resistance and flashover fault detection.
