The Essential Guide To U-Bolts Specifications And Industry Applications

(MENAFN- GetNews) In the world of heavy-duty trucks, where every component must withstand immense stress, one humble part plays a disproportionately critical role: the U-bolt . Though simple in design, this fastener is essential for vehicle safety, performance, and stability.

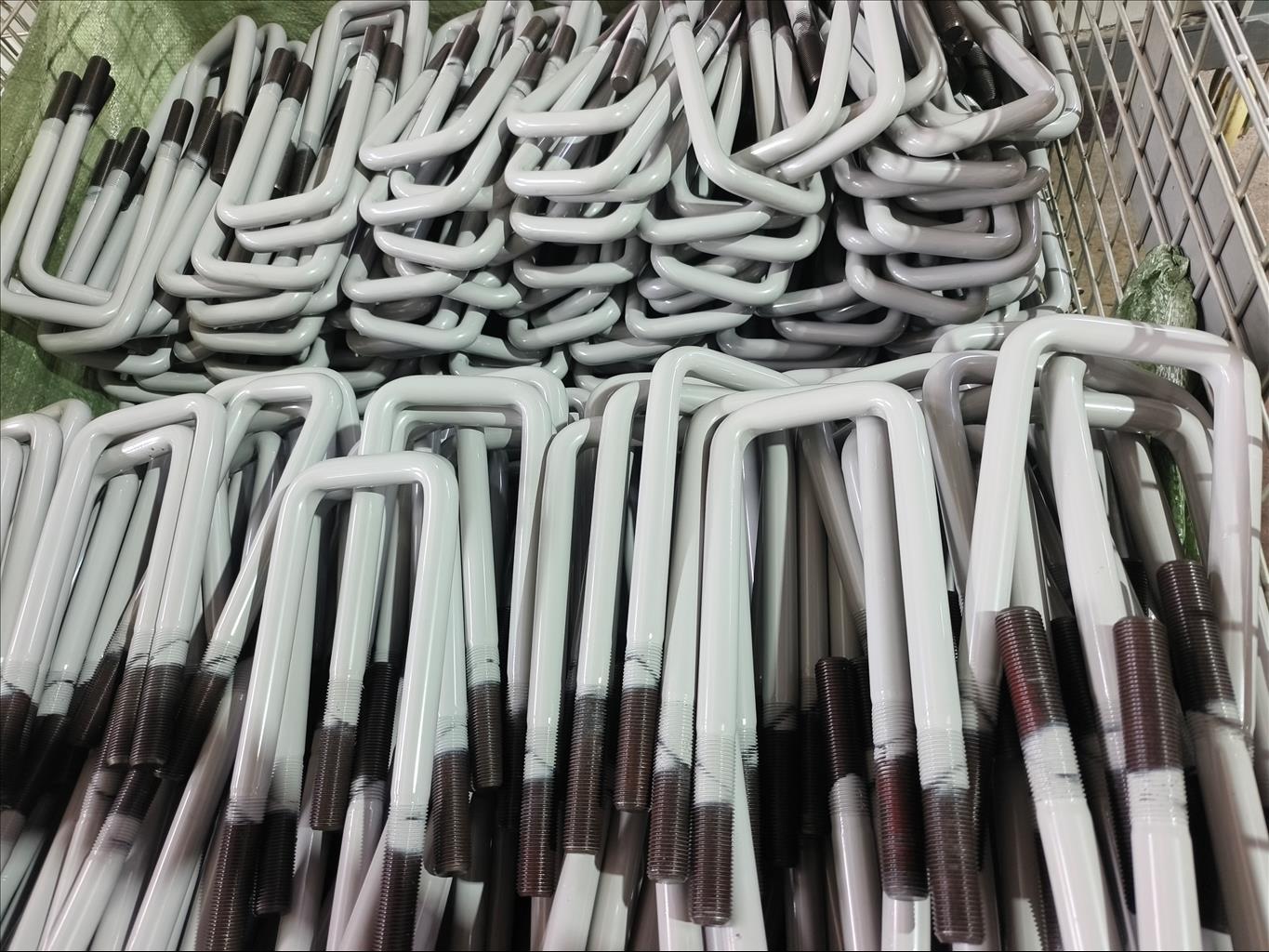

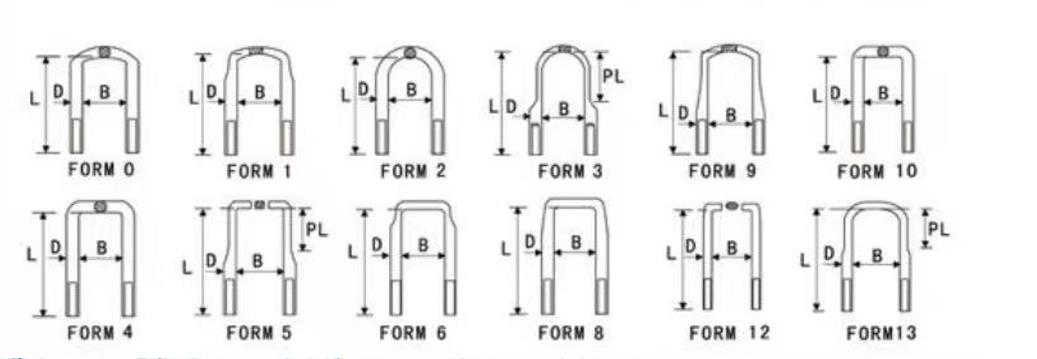

What is a U-Bolt? A U-bolt is a U-shaped mounting bolt made from high-strength steel rod,with threaded ends fitted with nuts and washers. Its primary function is to securely clamp the axle to the leaf spring suspension, forming a solid connection between the axle, suspension, and the truck's frame.

Why is it So Important? The U-bolt is far more than just a clamp is a vital load-bearing element that:

· Transfers vertical forces from the chassis weight and road impacts.

· Resists torsional forces during acceleration and braking, preventing axle rotation.

· Maintains alignment and driving stability. A loose or broken U-bolt can lead to axle misalignment, dangerous driving behavior, or even loss of control.

Where is it Used? U-bolts are most commonly found in trucks with leaf spring suspensions, such as:

· Drive axles

· Front steered axles

· Balancer shafts in multi-axle systems

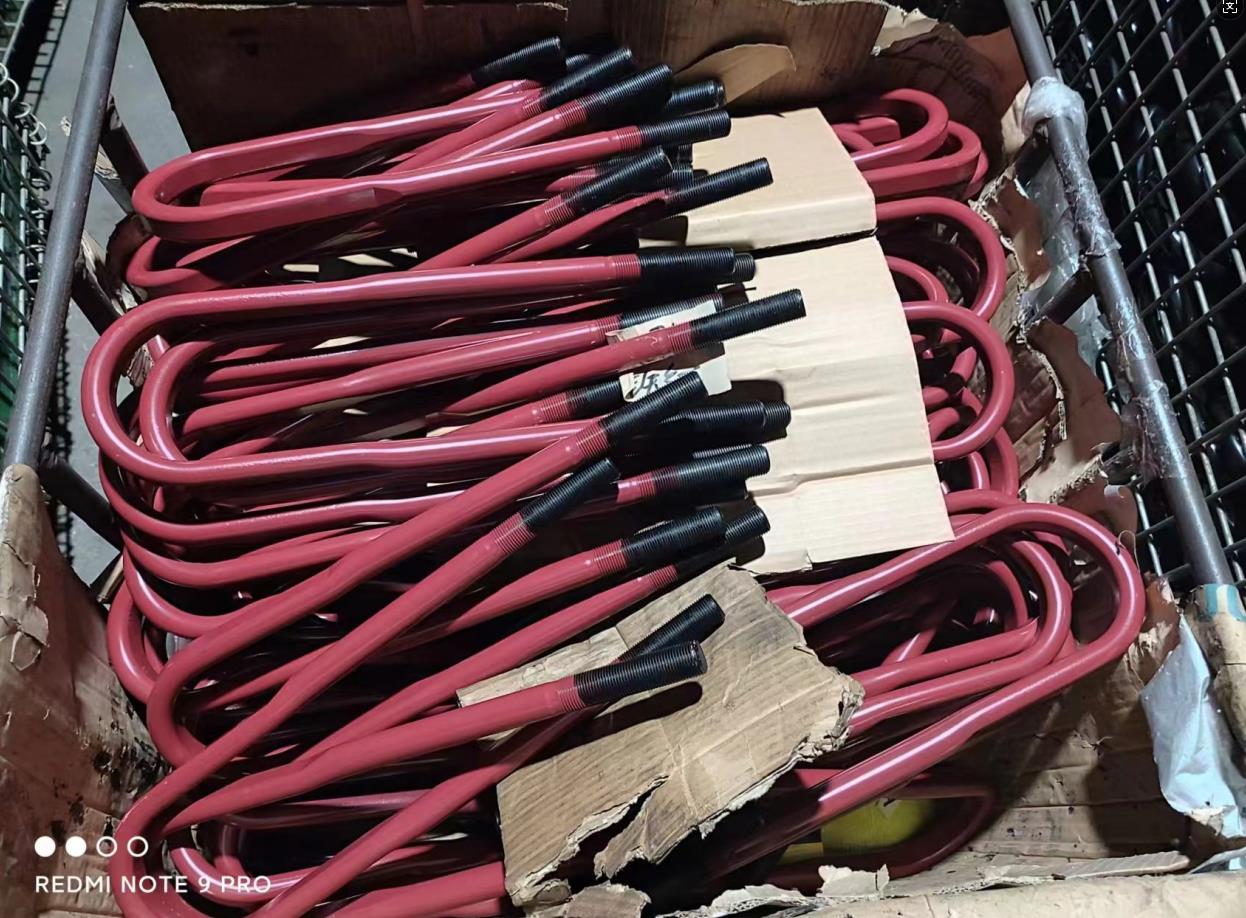

Built for Strength and Durability Manufactured from high-grade alloy steel(e.g., 40Cr, 35CrMo), U-bolts are formed through hot forging, heat-treated, and thread-rolled. Surface treatments like black oxide or zinc plating are applied to prevent corrosion and extend service life.

Maintenance and Safety Recommendations Proper installation and maintenance are non-negotiable:

· Always tighten with a torque wrench to the manufacturer's specified values.

· Follow a cross-pattern tightening sequence.

· Re-torque after initial use or after the vehicle has been run and settled.

· Regularly inspect for cracks, deformation, rust, or loose nuts.

· Replace in sets-never individually-if damage is detected.

Conclusion

Often overlooked,the U-bolt is a cornerstone of truck safety. Ensuring its integrity through correct installation and routine inspection is fundamental to safe operation. Next time you see a heavy-duty truck on the highway, remember the small but mighty component helping to keep it-and everyone around it-secure.
