Pacific Ridge Intersects 112.2 M Of 1.35% Copper Equivalent Or 2.02 G/T Gold Equivalent At The RDP Copper-Gold Project
Hole | From(m) | To(m) | Width(m) | Cu(%) | Au(g/t) | Ag(g/t) | CuEq( %) * | AuEq (g/t) ** |
RDP-25-10 | 2.2 | 5.0 | 2.8 | 0.90 | 0.71 | 3.12 | 1.40 | 2.08 |
RDP-25-11 | 4.8 | 409.8 | 405.0 | 0.44 | 0.38 | 1.87 | 0.71 | 1.06 |
includes | 4.8 | 27.0 | 22.2 | 1.49 | 1.00 | 5.86 | 2.20 | 3.29 |
and | 4.8 | 117.0 | 112.2 | 0.76 | 0.86 | 3.16 | 1.35 | 2.02 |
and | 4.8 | 139.7 | 134.9 | 0.66 | 0.74 | 2.78 | 1.18 | 1.77 |
and | 85.0 | 117.0 | 32.0 | 0.87 | 1.73 | 4.05 | 2.06 | 3.08 |
includes | 156.0 | 194.0 | 38.0 | 0.40 | 0.23 | 1.37 | 0.56 | 0.84 |
and | 150.9 | 278.0 | 127.1 | 0.30 | 0.12 | 1.09 | 0.39 | 0.58 |
includes | 346.0 | 383.0 | 37.0 | 1.05 | 0.97 | 5.38 | 1.74 | 2.60 |
and | 346.0 | 365.0 | 19.0 | 1.53 | 1.63 | 8.17 | 2.68 | 4.01 |
and | 346.0 | 409.8 | 63.8 | 0.69 | 0.58 | 3.39 | 1.11 | 1.65 |
*CuEq = ((Cu%) x $Cu x 22.0462) + (Au(g/t) x AuR/CuR x $Au x 0.032151) + (Ag(g/t) x AgR/CuR x $Ag x 0.032151)) / ($Cu x 22.0462). **AuEq = ((Au(g/t) x $Au x 0.032151) + ((Cu%) x CuR/AuR x $Cu x 22.0462) + (Ag(g/t) x AgR/CuR x $Ag x 0.032151)) / ($Au x 0.032151). Commodity prices: $Cu = US$4.60/lb, $Au = US$2,600/oz., and Ag = US$30.00/oz. There has been no metallurgical recovery testing on RDP mineralization. The Company estimates copper recoveries (CuR) of 80%, gold recoveries (AuR) of 60%, and silver recoveries (AgR) of 60% Factors: 22.0462 = Cu% to lbs per tonne, 0.032151 = Au g/t to troy oz per tonne, and 0.032151 = Ag g/t to troy oz per tonne. |
2025 RDP Drill Program
The 2025 drill program at RDP was focused on the Day target with the objective of following up on drill hole RDP-22-005, confirming that the porphyry Cu-Au-Ag mineralization intersected in RDP-22-005 is hosted in an east-northeast-striking, steeply northward-dipping tabular body, and testing the western magnetic lobe.

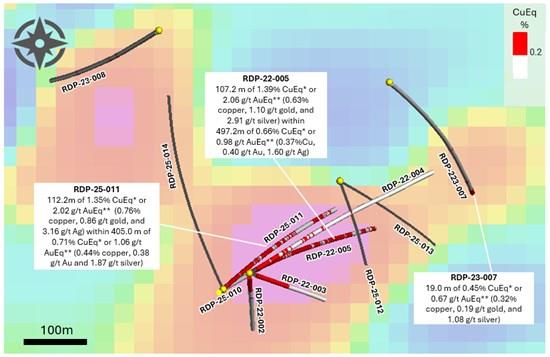

Figure 3
2025 Day Target Drill Hole Locations on MVI magnetics
To view an enhanced version of this graphic, please visit:
RDP-25-010, the first drill hole of the 2025 exploration program, was located 40 m southwest of RDP-22-005. RDP-25-010 was drilled at an azimuth of 60o degrees and dip of 72o. A stockwork of quartz-magnetite-chalcopyrite veins was encountered from 2.2 to 5.0m returning 2.8 m of 1.40 % CuEq* and 2.08 g/t AuEq** (0.90% Cu, 0.71 g/t Au and 3.12 g/t Ag) (Table 1) however, a late mineral intrusive was intersected from 5m to 175.5m and the hole was terminated.
RDP-25-011 was drilled from the same location at an azimuth of 48o degrees and dip of 65o to a depth of 431 m and cut underneath and to the northwest of RDP-22-005. Patchy potassic alteration (k-feldspar-magnetite) was intersected as well as intervals of strong quartz-magnetite sulphide veining, chalcopyrite+/- bornite mineralization (see Figure 4) hosted in early-mineral monzodiorite and hydrothermal breccia, extending mineralization to the north of RDP-22-005 by a minimum of 35m, with mineralization still being open to the north.
Figure 4
RDP-25-011 Drill Photos
To view an enhanced version of this graphic, please visit:
RDP-25-012 (48o /- 65o/363m length) and RDP-25-013 (160o /- 70o/582m length) were drilled from a site 170m northeast of RDP-22-005 to test the interpreted tabular porphyry Cu-Au mineralization geometry between RDP-22-005 and RDP-23-007, which was collared 300m NE of RDP-22-005 and ended in 19.0 m of 0.45% CuEq* or 0.67 g/t AuEq** (0.32% copper, 0.19 g/t gold, and 1.08 g/t silver)(see new release dated November 23, 2023). Chalcopyrite and bornite mineralization hosted in early-mineral, potassically-altered monzodiorite intrusive rocks and hydrothermal breccia were intersected (see Figures 5 and 6), which confirmed the concept of a tabular geometry. Copper-sulphide mineralization was intersected to a vertical depth of 500m in RDP-25-013 and it remains open.
Figure 5
RDP-25-012 Drill Photos
To view an enhanced version of this graphic, please visit:
Figure 6
RDP-25-013 Drill Photos
To view an enhanced version of this graphic, please visit:
RDP-25-014, the final drill hole of the 2025 RDP drill program, was designed to test the western magnetic lobe for copper-gold mineralization (see Figure 3). RDP-25-14 was drilled at an azimuth of 335o degrees and dip of 65oto a depth of 604m. Chalcopyrite-pyrite and chalcopyrite-bornite mineralization occur as disseminations, and with quartz-carbonate and epidote-actinolite veins cross-cutting potassium-feldspar and magnetite-altered monzodioritic intrusions (Figure 11).
Figure 7
RDP-25-014 Drill Core Photos
To view an enhanced version of this graphic, please visit:
QA/QC (Quality Assurance/Quality Control)
Pacific Ridge's 2025 exploration program was managed by Equity Exploration Consultants Ltd. of Vancouver, B.C. The drill contractor was Dorado Drilling Ltd. of Vernon, B.C. Half-core NQ (47.6 mm) sawed samples from continuous intervals throughout the reported drill holes were sealed on site and shipped to ALS Global Laboratories ("ALS") preparation lab in Terrace, BC. Fire assay and multielement analyses were completed at ALS Minerals analytical laboratory in North Vancouver. Drill core was crushed, pulverized and analyzed for 48 elements using a four-acid dissolution followed by ICP-MS (ME-MS61) with over limits by ore grade four-acid dissolution followed by ICP-AES (OG62), with a 30 g sample analyzed for gold by fire assay and atomic absorption finish (Au-AA23). Blanks and commercially certified reference materials were inserted blind into the sample stream with an overall insertion rate of 8%. Crush duplicates are inserted at a rate of 2.5%. Pulp and crush duplicates are inserted at 5% insertion rate by the laboratory. The QAQC results are reviewed as batches are returned from the laboratory and appropriate actions are implemented where required. The QA/QC results for the reported drill holes are acceptable.
About Pacific Ridge
A Fiore Group company, Pacific Ridge's goal is to become British Columbia's leading copper exploration company. The Kliyul copper-gold project, located in the prolific Quesnel terrane close to existing infrastructure, is the Company's flagship project. In addition to Kliyul, Pacific Ridge's project portfolio includes the RDP copper-gold project, the Chuchi copper-gold project, the Onjo copper-gold project, and the Redton copper-gold project, all located in B.C. The Company would like to acknowledge that its B.C. projects are in the traditional, ancestral and unceded territories of the Gitxsan Nation, McLeod Lake Indian Band, Nak'azdli Whut'en, Takla Nation, and Tsay Keh Dene Nation.
On behalf of the Board of Directors,
"Blaine Monaghan"
Blaine Monaghan
President & CEO
Pacific Ridge Exploration Ltd.
