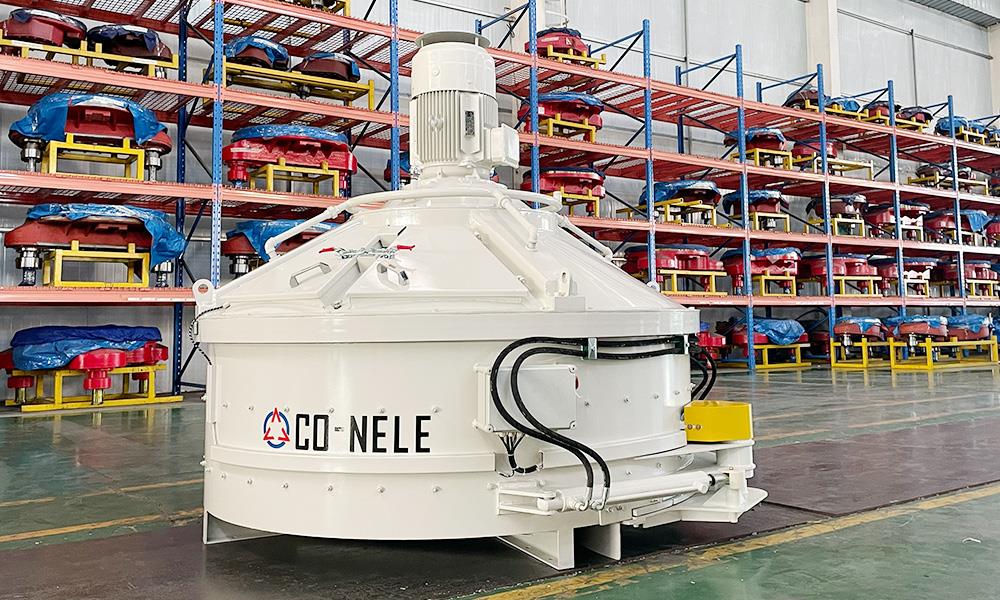

CO-NELE UHPC Mixer High Performance Planetary Mixer For UHPC

(MENAFN- GetNews) CO-NELE is a benchmark brand in the field of UHPC mixers. Its CMP Vertical Shaft Planetary Mixer is specially designed for the high homogeneity, high shear force and high wear resistance requirements of UHPC, making it a mainstream choice for global UHPC production.

Core Advantages of CO-NELE UHPC Mixers (Ideal for UHPC Applications)

1. Mixing Performance: Perfectly Matches UHPC Characteristics

• Planetary + High-Speed Shear Composite Motion: The mixing arm rotates both revolution and rotation, equipped with high-speed fly cutters, achieving 360° full coverage without dead corners in 5 seconds, solving the problems of agglomeration of ultra-fine UHPC powders and steel fiber clumping.
• Ultra-High Homogeneity: Uniformity CV ≤ 0.05, fiber dispersion rate >98%, with a single batch mixing time of only 3–8 minutes, far more efficient than traditional models.
• Patented Mixing Structure: Parallelogram blades (patented) can be reused after 180° flipping, doubling the service life.

2. Durability: Resists High Abrasion of UHPC

• High Wear-Resistant Materials: Mixing pot/liner made of high-chromium alloy/AR500-grade wear-resistant steel, blades/arms adopt hardened alloy with replaceable wear heads, thickness ≥20mm.
• Heavy-Duty Transmission: Self-developed hard-tooth surface planetary reducer (patented) features high torque, low noise and long service life, suitable for continuous high-load UHPC production.
• Reliable Sealing: Top-mounted drive + multiple sealing systems ensure zero slurry leakage, adapting to the low water-binder ratio of UHPC.

3. Intelligence & Adaptability: Meets Scaled & Customized Production

• PLC Intelligent Control: Touch-screen operation, formula storage, precise metering (error ±0.5%), fault diagnosis, ensuring stable UHPC production.
• Flexible Discharge: 1–3 hydraulic/pneumatic discharge doors for fast discharging and no residue, adapting to different production line layouts.
• Full Series Coverage: Ranging from 50L for laboratories to 6000L for large-scale production, supporting fixed/mobile/fast-moving mixing plants for precast, bridge, wind power and other scenarios.

4. Service & Reputation: Long-Term Reliability

• Over 100 patents, independent core technologies, in line with German standards.
• National service network providing one-stop support for installation, training, spare parts and after-sales service.
• Verified by long-term projects: e.g., Weihai UHPC decorative panel project, CMP1500/2000 models running stably for 7 years with outstanding service life and cost performance.

Main CO-NELE UHPC Models (CMP Series)

Model	Discharge Capacity (L)	Mixing Power (kW)	Application Scenarios	Typical Output
CMP50	50	3	Laboratory, pilot test, R&D	1–3 batches/hour
CMP250	250	15	Small precast, sample production	4–6 batches/hour
CMP500	500	22	Medium precast, component factory	6–8 batches/hour
CMP1000	1000	37	Conventional UHPC precast, bridges	8–10 batches/hour
CMP1500	1500	55	Large precast, municipal engineering	10–12 batches/hour
CMP2000	2000	75	Large-scale production, wind turbine towers	12–15 batches/hour
CMP3000	3000	110	Extra-large scale, precast bases	15–18 batches/hour
CMP4500	4500	250	Mega projects, continuous production	18–22 batches/hour

Selection Solutions by Scenario

1. Laboratory / R&D

Small Batch, High Precision

Recommended: CMP50 / CMP100

Compact size, easy operation, ideal for UHPC formula R&D and performance testing.

Optional vacuum mixing for preparing high-density UHPC samples.

2. Small & Medium Precast Plants

Components, Panels, Decorative Parts

Recommended: CMP500 / CMP750 / CMP1000

Balances efficiency and cost, 1000L per batch suitable for most precast components.

Can be equipped with a simple batching station to quickly build a UHPC production line.

3. Large Precast / Bridges / Wind Power

Large Scale, High Strength

Recommended: CMP1500 / CMP2000 / CMP3000

Heavy-duty design for steel fiber UHPC and large-volume components.

Adaptable to UHPC fast-moving mixing plants for multi-site mobile construction.

4. Mega Projects / Continuous Production

Ultra-High Output

Recommended: CMP4500 / CMP6000

Extra-large capacity and high power to meet 100-ton daily UHPC production.

Fully automatic batching + intelligent control, compatible with Industry 4.0 production lines.
