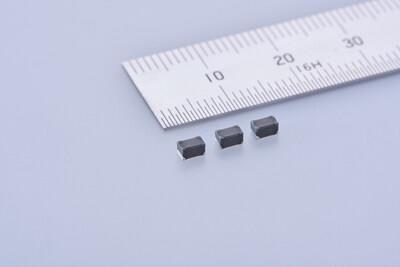

TAIYO YUDEN Commercializes LCQPB Series Of Power Inductors For Automotive Application

2025-05-09 11:18:58

(MENAFN- PR Newswire)

TAIYO YUDEN previously released the LCEN series and LCCN series of metal power inductors made from metallic magnetic substances for automobile application and the LCXN series and LCXH series of ferrite power inductors. To these, we add the new LCQPB series to give our customers more choice by substance and structure and a high degree of freedom in design.

The LCQPB series inductors have been manufactured by our overseas subsidiary, TAIYO YUDEN PHILIPPINES, (Lapulapu City, Cebu) since March 2025. Samplesare available for 50 yen per unit.

Technology Background
The advancements that we have seen in recent years in electronic controls in vehicles, as typified by ADAS units, have led to a greater number of power supply circuits on vehicles, which in turn has led to growth in the demand for power inductors that are used in these circuits. In order to miniaturize power supply circuits, engineers demand inductors with specific properties that allow high-density mounting with a high degree of freedom in design and noise suppression by frequency.

Therefore, TAIYO YUDEN has newly commercialized the LCQPB series, which complies with AEC Q200. The LCQPB series inductors have a frameless structure that results in a small footprint. The new LCQPB series, together with our other series of inductors designed for automotive application, give our customers more choice by substance and structure and a high degree of freedom in design.

TAIYO YUDEN focuses on the development of products that meet market needs, and will continue to expand its power inductor product lineup.

■ Application
The LCQPB series power inductors are applicable as choke coils and noise filters in DC-DC converters in power circuits for automotive body and information systems.

■ Characteristics

Part number	Size (LxW) [mm]	H [mm] max.	Nominal inductance [μH]	Inductance tolerance [%]	Rated current34 [A] max.	DC resistance [mΩ] max.
Saturation current Idc1*1	Temperature rise current Idc2*2
LCQPB321919TR22M	3.2x1.9	2.15	0.22	±20	4.1	2.7	30
LCQPB321919TR29M	0.29	3.7	2.5	34
LCQPB321919TR47M	0.47	3.0	2.2	43
LCQPB321919TR68M	0.68	2.5	2.0	54
LCQPB321919TR88M	0.88	2.3	1.9	60
LCQPB321919T1R0M	1	2.1	1.7	66
LCQPB321919T1R5M	1.5	1.8	1.4	110
LCQPB321919T2R2M	2.2	1.5	1.3	130
LCQPB321919T2R7M	2.7	1.2	1.14	170
LCQPB321919T3R3M	3.3	1.1	1.1	180
LCQPB321919T4R7M	4.7	0.94	1.0	220
LCQPB321919T5R6M	5.6	0.85	0.90	240
LCQPB321919T6R8M	6.8	0.80	0.88	280
LCQPB321919T8R2M	8.2	0.75	0.79	350
LCQPB321919T100K	10	±10	0.70	0.775	380
LCQPB321919T150K	15	0.53	0.64	520
LCQPB321919T220K	22	0.43	0.50	820
LCQPB321919T330K	33	0.35	0.36	1320
LCQPB321919T470K	47	0.30	0.31	1920
LCQPB321919T680K	68	0.25	0.28	2520
LCQPB321919T101K	100	0.20	0.25	3360

*1 The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20°C)

*2 The temperature rise current value(Idc2) is the DC current value having temperature increase up to 40°C. (at 20°C)

*3 The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.

*4 Derating of the rated current may be necessary depending on the ambient temperature. Please contact your local sales office if you need more detailed information.

For the detailed product lineup, refer to TAIYO YUDEN's Web site:

* The names of series noted in the text are excerpted from part numbers that indicate the types and characteristics of the products, and therefore are neither product names nor trademarks.

Note: Products are tested based on the test conditions and methods defined in AEC-Q200. Please consult with TAIYO YUDEN for details of the product specifications and AEC-Q200 test results, etc., and please review and approve TAIYO YUDEN's product specifications before ordering.
