Filters For Chemical Water Treatment Systems Of Large Enterprises

(MENAFN- RCTT) OKB "Academicheskoe" offers consumers a Filters for chemical water treatment systems of large enterprises, including the development of unique design documentation, production and supply of products for chemical water treatment systems of large enterprises using large volumes of water under a manufacturing agreement and is looking for partners to conclude a distribution services agreement. Description Filters for large-scale industrial water treatment systems are a crucial element in ensuring water quality in industrial processes. They are used to purify water from mechanical impurities, chemical contaminants, microorganisms, and other undesirable components. Leading manufacturers specializing in the development and production of such filters are represented on the global market.
The leading global manufacturers of filters for large-scale industrial water treatment systems are:
1. Veolia Water Technologies (France
2. SUEZ Water Technologies & Solutions (USA)
3. GEA Group (Germany)

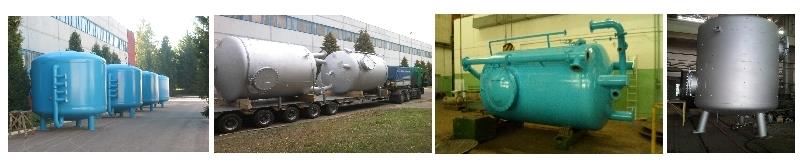

Filters developed and manufactured by OKB "Akademicheskoe" are used in chemical water treatment systems of large enterprises that require large volumes of consumed water. The company produces ion-exchange, cation-exchange, mixed-action filters with internal regeneration, iron removal filters, traps, etc.), with a capacity of up to 160 m³ / h and an operating pressure of up to 1.6 MPa and can be equipped, depending on the purpose, with various types of distribution devices and filter elements.
Filters 1FV.000, 2FV.000, 3FV.000 are designed to purify water from mechanical impurities, as well as for boiler houses in order to remove aggressive impurities from the water.
Filter FV1.00.000 is designed to remove iron from water.
Filter 2FV.000 is used to filter drinking water. The inner surface of the filter is covered with an epoxy coating for drinking water "Inerta-205".
The main construction materials used in filters: steel 09G2S according to GOST 5520-79, steel 20 according to GOST 1050-88, steel 12Kh18N10T according to GOST 5632-72.

Specifications	1FV.000	2FV.000	3FV.000	FV1.00.000
Working pressure, MPa	0.8	0.6	0.4	0.3
Operating temperature, deg С	from plus 5 to plus 50	from plus 5 to plus 50	from plus 5 to plus 40	no more than plus 50
Working medium	water, filter material	water, sand	water filter material	water filter material
Inner diameter, mm	1000	2900	1000	2400
Internal volume, cu. m	1.55	18.8	1.71	13
Overall dimensions, mm	1188x2330	3340x3112x3360	1144x1008x2530	4010x2080
Weight (without filter material), kg	460	3600	491	2500
Main structural material	2Х18Н10Т GOST 5632-72	09Г2С GOST 5520-79	12Х18Н10Т GOST 5632-72	09Г2СGOST 5520-79

Information on filters for chemical water treatment systems is posted in the Album of promising developments of the NAS of Belarus organizations for the real sector of the economy (2023) p. 142. and the Catalog "Brands of the National Academy of Sciences of Belarus 2021–2022: List of the Most Important Developments of the National Academy of Sciences of Belarus," p. 98. (in Russian)
Additional information is available on the OKB "Academicheskoe" website in the "Water Treatment" section. (in Russian)
Advantages and Innovations The achieved performance indicators correspond to world analogues, which is the basis for promoting filters to the markets of the Republic of Belarus and neighboring countries. Filters for chemical water treatment systems comply with the requirements of the technological regulations of the Customs Union TR CU 010/2011 "On the safety of machinery and equipment" and TR CU 032/2013 "On the safety of equipment operating under excess pressure".
Scope (sector of the economy, potential product consumers).
Oil and gas industry. Consumers of the products include enterprises such as PO Belorusneft, OAO Naftan, OAO Mozyr Oil Refinery, and UP Vitebskoblgaz.
Potential consumers of the products may include all organizations related to the energy sector of the Republic of Belarus and the allied states in the oil and gas industry.
Stage of development Already on the market Funding source Internal
Investor
IPR status Exclusive rights
Secret know-how
Comments regarding IPS status The products are unique, and the design and operating documentation developed by the organization constitutes its intellectual property and is protected as a trade secret. Import-substituting products. Sector group Aeronautics, Space and Dual-Use Technologies
Agrofood
BioChemTech
Intelligent Energy
Environment
Maritime Industry and Services
Mobility
Client information Type R&D institution Year established 1973 NACE keywords C.25.29 - Manufacture of other tanks, reservoirs and containers of metal
C.25.30 - Manufacture of steam generators, except central heating hot water boilers
C.25.99 - Manufacture of other fabricated metal products n.e.c.
M.72.19 - Other research and experimental development on natural sciences and engineering
M.74.90 - Other professional, scientific and technical activities n.e.c.
Turnover (in EUR) 10-20M Already engaged in transnational cooperation Yes Additional comments OKB "Akademicheskoe" is one of the leading enterprises with extensive experience in the manufacture of import-substituting equipment in the chemical, oil and gas and nuclear engineering in the Republic of Belarus (licenses No. 02300 / 544-4 of the Department of Nuclear and Radiation Safety of the Ministry of Emergency Situations of the Republic of Belarus and licenses No. 02300 / 2449-1 of the State Industrial Supervision Service of the Ministry of Emergency Situations of the Republic of Belarus).
OKB "Akademicheskoe" is a leading enterprise in the nuclear engineering industry in the Republic of Belarus.
OKB "Akademicheskoe", at the current stage of its development, is a multi-industry design and production and research complex with a closed cycle, from the design of various types of products (tank equipment, tank equipment and process equipment based on them) to their manufacture and commissioning in the field of:
* science and scientific services (including in the field of nuclear energy);
* chemical apparatus engineering (for the oil and gas complex and chemical plants);
* power engineering (heat exchange equipment and process equipment with its use and the use of vessels operating under pressure);
* milk processing (UF, RO, CIP-washers, neutralization units, dispersants, emulsifiers, pumps of various types and purposes, etc.);
* water treatment (water filters of various types and capacities);
* alcohol production;
* pharmaceutical industry;
* airfield equipment, etc.
The enterprise is a supplier of equipment to the Russian State Corporation "ROSATOM" and currently equips power units of the Belarusian NPP with equipment.
The enterprise has the technological capabilities to perform various types of mechanical processing (turning, milling, grinding, jig boring, welding, rolling, bending, etc.), welding (products made of carbon, stainless steel, copper, aluminum and titanium alloys) and control of finished products (radiographic, ultrasonic and capillary flaw detection, hydraulic testing, as well as an implemented and operating quality management system for design and manufacturing that meets the requirements of STB ISO 9001-2015 (certificate of conformity No. BY / 112 05.01.031 until 02.10.2020).
The enterprise offers mutually beneficial cooperation in the development and joint manufacture of equipment, cooperation, with the supply of manufactured equipment to enterprises in the countries of the Eurasian Economic Union and other countries.
Official website of the OKB "Akademicheskoe". Certification standards The design and manufacturing quality management system complies with the requirements of STB ISO 9001-2009 (Certificate of Conformity No. BY/112 05.01.031). Languages spoken English
Russian
Information about partnership Type of partnership considered Distribution services agreement
Manufacturing agreement
Type and role of partner sought Consumers interested in purchasing a Filters, including the development of unique design documentation, production and supply of products for chemical water treatment systems of large enterprises using large volumes of water under a manufacturing agreement.
Partners interested in purchasing a Filters, including the development of unique design documentation, production and supply of products for chemical water treatment systems of large enterprises using large volumes of water under a distribution services agreement. Type and size of partner sought > 500
251-500
SME 51-250
SME 11-50
SME <= 10
R&D Institution
Sole proprietor
