TMM-80A Plate Bevelling Machine Heavy Industry Case

(MENAFN- GetNews) Steel plate beveling machines play a vital role in heavy industry, where precision and efficiency are paramount. These machines are specifically designed to machine smooth surfaces on a variety of materials, including metals, plastics, and composites, making them indispensable tools in the manufacturing process.

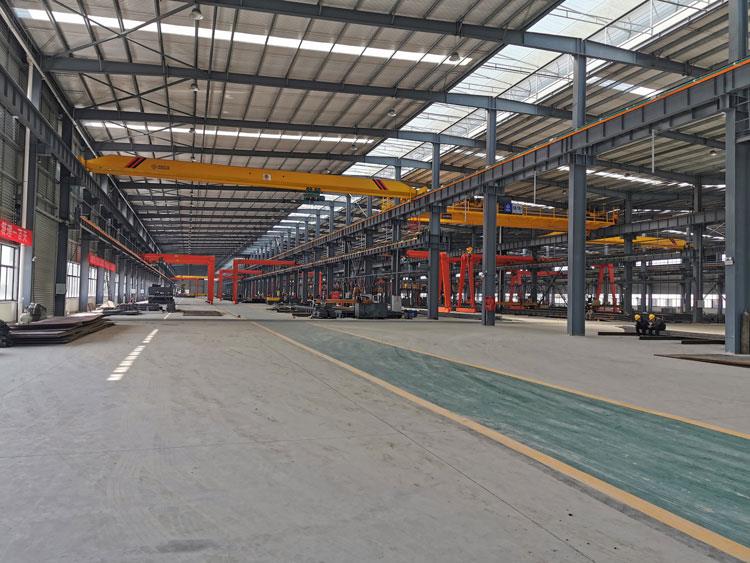

We are collaborating with a large steel structure factory in Jiangsu this time.

Customer requirements for processing sheet metal:

The customer called over the phone to explain that their company's process requires processing Q345B steel plates, which are 1500mm wide, 4000mm long, and 20-80mm thick.

After understanding the customer's needs, we recommend the model TMM-80A edge milling machine to them.

Product Features

1. The bevel angle adjustment range is large, allowing for arbitrary adjustment within 0 to 60 degrees;

2. With a groove width of 0-70mm, this is a high-cost-performance steel plate beveling machine (steel plate beveling equipment)

3. Post-positioning of the reducer facilitates the processing of narrow plates and enhances safety;

4. The unique separate design of the control box and electrical box ensures safer operation;

5. Use a high-tooth-count milling cutter for groove milling, with single-blade cutting for smoother operation;

6. The machined groove surface roughness reaches Ra3.2-6.3, fully meeting the welding requirements for pressure vessels;7. Compact in size and lightweight, this is a portable automatic walking edge milling machine, as well as a portable beveling machine;8. Cold cutting beveling operation, with no oxide layer on the bevel surface;9. Autonomous technology makes it possible for machines to continuously improve their quality.

Product parameters

Product Model	TMM-80A	Processing board length	>300mm
Power Supply	AC 380V 50HZ	Bevel angle	0~60°Adjustable
Total power	4800W	Single Bevel width	15~20mm
Spindle speed	750~1050r/min	Bevel width	0~70mm
Feed Speed	0~1500mm/min	Blade diameter	φ80mm
Thickness of clamping plate	6~80mm	Number of blades	6pcs
Clamping plate width	>80mm	Workbench height	700*760mm
Gross weight	280kg	Package size	800*690*1140mm

After the TMM-80A plate beveling machine was delivered to the site and workers received specialized video guidance, they successfully produced one edge with a single pass. The resulting bevel effect was highly satisfactory. The feedback provided to our company was: "We are very satisfied with the efficiency and performance of this equipment. For future use, we need to add three more units to achieve a high-efficiency processing solution that handles all four edges simultaneously."
