An ocean like no other: the Southern Ocean's ecological richness and significance for global climate

(MENAFN- The Conversation) In 2018, a map named after an oceanographer went viral.

The so-called [To enable links contact MENAFN] Spilhaus projection, in which Earth is viewed from above the South Pole, was designed to show the connected nature of the ocean basins.

It is a perspective that comes naturally to those who live in the ocean-dominated southern hemisphere.

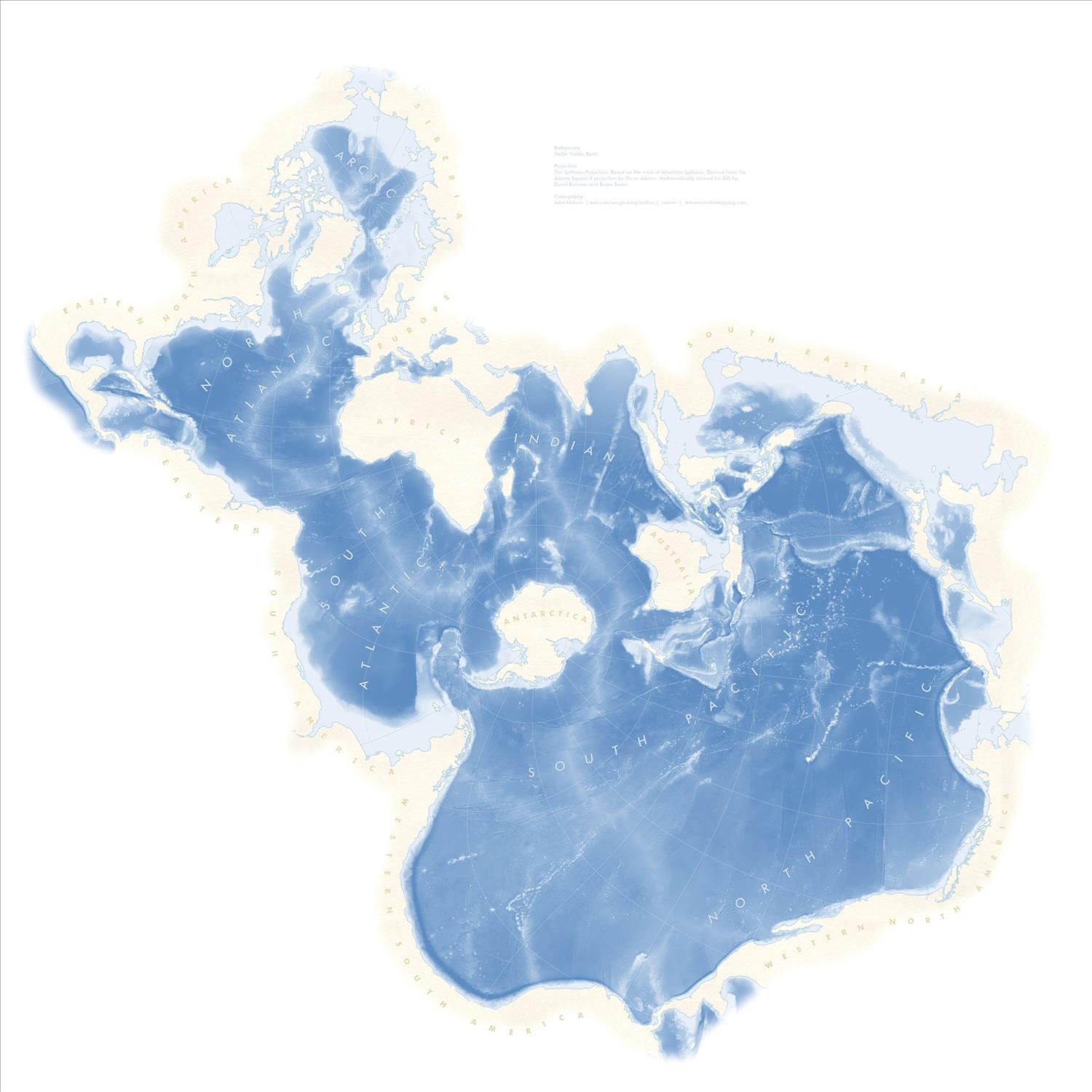

The Spilhaus map depicts the world's oceans as a single body of water. [To enable links contact MENAFN] Spilhaus ArcGIS project, [To enable links contact MENAFN] CC BY-ND

The Southern Ocean, also [To enable links contact MENAFN] called the Antarctic Ocean (or even the Austral ocean), is like no other and best described in superlatives.

Storing heat and carbon

Let's first look at the Southern Ocean's capacity to store excess heat and carbon. The world's oceans take up more than 90% of the excess heat generated by the burning of fossil fuels and a third of the additional carbon dioxide.

The Southern Ocean is our planet's primary storage of heat and carbon. Crag Stevens, Author provided

The Southern Ocean, south of 30°S, is [To enable links contact MENAFN] estimated to store about 75% of this global oceanic uptake of excess heat and about 35% of the global uptake of excess carbon from the atmosphere. It is the primary storage of heat and carbon for the planet.

The Southern Ocean connects all major ocean basins, except the Arctic. The link is the Antarctic Circumpolar Current ([To enable links contact MENAFN] ACC) – the largest ocean current on the planet. It carries more than 100 times the flow of all the rivers on Earth and transports enough water to fill Lake Ontario in just a few hours.

A combination of strong winds and a nearly uninterrupted passage around Antarctica give the ACC its strong flows and speed.

Read more: [To enable links contact MENAFN] Explainer: how the Antarctic Circumpolar Current helps keep Antarctica frozen

Mixing global currents

The Roaring Forties, Furious Fifties and Screaming Sixties are all popular names for the strong westerly winds that blow, nearly uninterrupted, across the Southern Ocean, creating equally impressive waves. This results in a massively energetic – and hard to measure – ocean surface.

Strong westerly winds and the circumpolar current create massive waves in the Southern Ocean. Craig Stevens, Author provided

But the heat and carbon exchanges across this complicated interface are globally important, and oceanographers have designed tools specifically for this challenging environment.

Ocean currents with different properties mix, rise and sink. Craig Stevens, Author provided

To really comprehend the Southern Ocean, one must think in three dimensions. Waters with different properties mix both horizontally and vertically in eddies.

Relatively warm subtropical water is mixed south, deep cool water from the North Atlantic rises back up toward the surface and colder polar water masses mix northward and sink back down.

This complex interplay is guided by the wind and by the shape of the seafloor.

To the north, there are only three major constrictions: the 850km-wide Drake Passage, and the submarine Kerguelan and Campbell Plateaus. To the south, the ACC butts up against Antarctica.

Here the ocean plays another crucial role in the global climate system by bringing relatively warm — and warming — [To enable links contact MENAFN] Circumpolar Deep Water into contact with the ice fringing Antarctica.

Annual thaw and freeze of sea ice

The annual cycle of sea ice growing and melting around Antarctica is one of the defining rhythms of our planet and an important facet of the Southern Ocean. The two polar regions couldn't be more different in this regard.

The Arctic is a small, deep ocean surrounded by land with only narrow exits. The Antarctic is a large landmass with a continental shelf surrounded by ocean. Each year, 15 million square kilometres of sea ice advance and retreat in these waters.

The annual freezing and thawing of sea ice around Antarctica is the world's largest seasonal change. Shutterstock/Maxim Tupikov

In contrast to the clear and dramatic [To enable links contact MENAFN] changes in the north, the rhythm of Antarctic sea ice has followed [To enable links contact MENAFN] less obvious patterns. In the face of a warming ocean, it was actually slowly expanding northward until around 2016, when it suddenly started to contract.

Read more: [To enable links contact MENAFN] Why Antarctica's sea ice cover is so low (and no, it's not just about climate change)

Looking at the [To enable links contact MENAFN] annual cycle of Antarctic sea ice, one might think it simply grows and melts in place as things get cold and warmer through the year. But in truth, much of the sea ice production happens in [To enable links contact MENAFN] polynya – sea ice factories near the coast where cold and fast Antarctic winds both create and blow away new sea ice as fast as it appears.

This process brings us back to global ocean circulation. When the new ice grows, the salt from the freezing sea water gets squeezed out and mixes with the seawater below, creating colder and saltier seawater that sinks to the seafloor and drains northward.

Polynya are in effect a metro stop on a global transport system that sees water sinking at the poles, flowing north to be mixed upwards in a cycle lasting close to 1,000 years.

Not all ice shelves respond the same

[To enable links contact MENAFN] Computer simulations have shown how the ice shelves at Antarctica's fringe have waxed and waned over past millennia.

Because these floating extensions of the ice sheet interact directly with the ocean, they make the [To enable links contact MENAFN] ice sheet sensitive to climate. Ocean warming and changes in the source of the water coming into contact with an ice shelf can cause it – and in turn the whole ice sheet – to change.

Floating ice shelves act like a buttress to hold back Antarctica's massive ice sheet. Shutterstock/sirtravelalot

But not all ice shelves will respond to warming in the same way. Some ocean cavities are cold and slowly evolving. Others are actually described as hot – in polar terms – because of their interaction with Circumpolar Deep Water. The latter are changing rapidly right now.

We can observe many cryosphere processes from [To enable links contact MENAFN] space, but to truly understand how far the ocean reaches beneath the ice we have to go hundreds of metres beneath the ice surface.

Making climate predictions requires an understanding of detailed processes that happen on short timescales, such as tidal cycles, in parts of the planet we are only beginning to explore.

Read more: [To enable links contact MENAFN] What an ocean hidden under Antarctic ice reveals about our planet's future climate

Observing the Screaming Sixties

How do we sample something so big and so stormy? With robots.

Satellites have been observing the ocean surface since the 1980s. This technology can measure properties such as temperature and ocean surface height, and even be used to estimate biological productivity. But satellites can't see beneath the surface.

When the game-changing [To enable links contact MENAFN] Argo programme started in the 1990s, it revolutionised earth science by building a network of drifting ocean sentinels measuring temperature and salinity down to a depth of two kilometres.

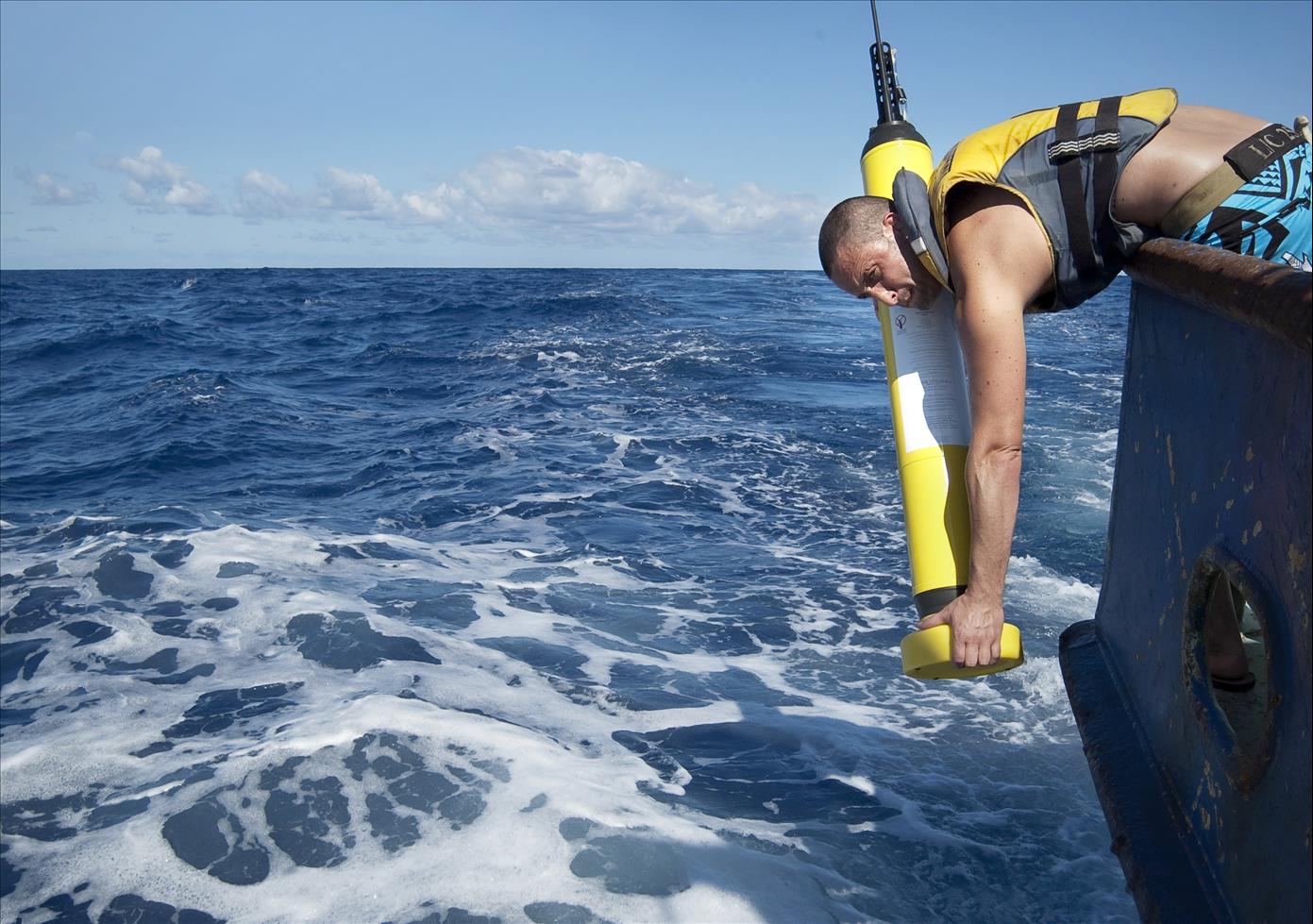

Argo probes measure salinity and temperature as they drift with currents in the Southern Ocean. NIWA/Daniel Jones, Author provided

The research vessel Kaharoa holds the record for the most deployments of Argo probes in the Southern Ocean, including its most recent storm-tossed, [To enable links contact MENAFN] COVID-19-impacted voyage south of Australia and into the Indian Ocean.

The Argo program is only the start of a new era of ocean observation. Deep Argo probes dive to depths of 6km to detect how far down ocean warming is penetrating.

The past and future Southern Ocean

Earth hasn't always looked as it does today. At times in the planet's past, the Southern Ocean didn't even exist. Continents and ocean basins were in different positions and the climate system operated very differently.

From the narrow view of human evolution, the Southern Ocean has been a stable component of a climate system and subject to relatively benign glacial oscillations. But glacial cycles play out over tens of thousands of years.

We are imposing a very rapid climate transient. The nearly three centuries since the start of the industrial revolution is shorter than the blink of an eye in geological context.

Antarctica's ice is changing as global temperatures rise. Shutterstock/Bernhard Staehli

Future changes in the short (say by 2050) and long (by 2300) term are difficult to project. While the physics are relatively clear about what will happen, predicting when it will happen is more challenging.

Simulation tools that get the ocean, atmosphere and ice processes right are only starting to include ice shelf cavities and ocean eddies. The most recent synthesis of climate models shows progress in the [To enable links contact MENAFN] simulated workings of the Southern Ocean. But sea ice remains a challenge to simulate well.

This is the frontier: a global research community working to connect data with rapidly improving computer models to better understand how this unique ocean operates.

Life in a sub-zero ocean

At first glance, Antarctica seems an inhospitable and almost barren environment of ice and snow, speckled with occasional seabirds and seals.

But diving beneath the surface reveals an ocean bursting with life and complex ecosystems, from single-celled algae and tiny spineless creatures to the well-known top predators: penguins, seals and whales.

The Southern Ocean is home to more than [To enable links contact MENAFN] 9,000 marine species – and expeditions and studies keep revealing more.

The RV Polarstern battles through a storm in the Southern Ocean. Huw Griffiths, Author provided

It's not easy to study life in the Southern Ocean. Waves can be [To enable links contact MENAFN] more than 20 metres high, and icebergs and sea ice lurk among them.

The water temperature is often sub-zero – freshwater freezes at 0℃, but [To enable links contact MENAFN] saltwater freezes at closer to -2℃. Although scuba diving is possible, a lot of research on life in the Southern Ocean is done through remote sampling.

Marine scientists use robotic tools such as [To enable links contact MENAFN] remotely operated underwater vehicles to look at and collect samples, and [To enable links contact MENAFN] grabs and dredges to bring up bottom-dwelling organisms. We take genetic samples from marine mammals by shooting tiny [To enable links contact MENAFN] biopsy tubes (like needles), attached to a cord for retrieval, into the animal's flesh from a distance.

Read more: [To enable links contact MENAFN] Genome and satellite technology reveal recovery rates and impacts of climate change on southern right whales

We can glean wider information on diversity from environmental DNA ([To enable links contact MENAFN] eDNA). Traces of organisms are filtered from samples of water and analysed using genetic tools that can usually identify what sorts of species are or were present.

Every expedition reveals [To enable links contact MENAFN] new species – some of which are potentially [To enable links contact MENAFN] commercially valuable, and all of which are important parts of the Southern Ocean ecosystem. Our knowledge of the diversity of the region is growing rapidly.

Nonetheless, the Southern Ocean is vast, and much of it remains either unsampled or undersampled.

Down at the bottom of the food chain

In the Southern Ocean, primary producers (organisms at the start of the food chain) range from single-celled algae – such as [To enable links contact MENAFN] diatoms with intricately detailed shells made of silica – through to large [To enable links contact MENAFN] macroalgae like kelp.

Algae growing on the underside of sea ice. Andrew Thurber, Author provided

Kelp and other large seaweeds generally only survive where icebergs don't often scrape the seafloor. Diatoms are diverse, and some species thrive on the underside of sea ice.

Ice algae form an important food source for [To enable links contact MENAFN] krill, small crustaceans that are a critical part of Southern Ocean food webs.

Antarctic krill is a key species in the Antarctic marine ecosystem. British Antarctic Survey, Author provided

Astonishingly, the cold Southern Ocean is also home to hot hydrothermal vent systems. These [To enable links contact MENAFN] communities, which include huge densities of crustaceans and echinoderms, get their energy from chemicals that seep out of Earth's crust, rather than from the Sun.

An Antarctic hydrothermal vent on the East Scotia Ridge. The image was taken by a remotely operated vehicle during the ChEsSO expedition. ChEsSO/NERC, Author provided

Antarctic invertebrates make up [To enable links contact MENAFN] more than 90% of the species in the Southern Ocean. More than 50% are unique to this ocean.

These invertebrates are often much larger than their relatives in more northern, warmer waters. This phenomenon is know as '[To enable links contact MENAFN] polar gigantism' and is found across many groups, with giant sea spiders, huge sponges and scale worms the size of a forearm.

A selection of invertebrates commonly found by scientists diving at Rothera Station, Antarctica. British Antarctic Survey, Author provided

Nobody is quite sure why Antarctic invertebrates grow so large, but it may be related to high oxygen levels, slow growth rates or the absence of key predatory groups such as sharks and brachyuran crabs.

Marine invertebrates on the seafloor off the Antarctic coast. Alfred Wegener Institute, OFOBS team, Author provided Higher up in the food chain

In the marine food chain, Antarctic krill swim between the algal primary producers and the iconic top predators we always associate with Antarctica.

Baleen whales get much of their energy from great gulps of swarming krill (10,000–30,000 individual animals per cubic metre), and the pink streaks in penguin and seal poo show they are also keen on these tasty crustaceans.

Chinstrap penguins on Deception Island. Many penguins pooh in pink, because their diet is rich in krill. Michelle LaRue, Author provided

Fish and cephalopods (squid and octopus) thrive in the Southern Ocean, providing food for deep-diving marine mammals such as [To enable links contact MENAFN] elephant seals. Some fish species are so well adapted to the oxygen-rich cold waters they no longer produce red blood cells but instead produce [To enable links contact MENAFN] antifreeze proteins in their blood to help them survive in the subzero waters.

Many whale species depend on Antarctic ecosystems for summer feeding and migrate to warmer, lower latitudes for winter breeding. But Antarctic minke whales are resident all year round. Huw Griffiths, Author provided Protecting marine environments

Arguably the most voracious predators in the Southern Ocean are [To enable links contact MENAFN] humans.

Antarctica might be remote, but in the 200 years since its discovery, the seas around Antarctica have been heavily exploited by people.

First came the sealers, then the whalers, driving species to the brink of extinction. Even penguins were harvested for their oil.

An abandoned whaling station. Ceridwen Fraser, Author provided

More recently, fish and krill (which is fished for [To enable links contact MENAFN] food or dietary supplements) have been the main targets, and populations of some species have declined sharply as a consequence.

Read more: [To enable links contact MENAFN] Humans are encroaching on Antarctica's last wild places, threatening its fragile biodiversity

When more indirect impacts like ocean warming and acidification combine with fishing, this can lead to [To enable links contact MENAFN] declining populations of krill, which in turn leads to reduced numbers of top predators such as whales.

[To enable links contact MENAFN]


Humans are changing Southern Ocean ecosystems in many ways, both directly (purple-blue arrows) and indirectly (red arrows). [To enable links contact MENAFN] From: Chown et al (2015) The changing form of Antarctic biodiversity. Nature, 522: 431-438, [To enable links contact MENAFN] CC BY-ND

Fishing in the Southern Ocean can be hard to regulate because these waters do not belong to any one nation. To help manage the impact of fisheries, quotas that limit catches are now managed by the Commission for the Conservation of Antarctic Marine Living Resources ([To enable links contact MENAFN] CCAMLR).

This international body is also working to establish more marine protected areas. Without these efforts to manage catches, critical parts of the food web (such as krill) could be exploited to such an extent that ecosystems could collapse.

Changing environments mean changing ecosystems

More than 21,000 [To enable links contact MENAFN] tourists and [To enable links contact MENAFN] scientists visit Antarctica each year, potentially bringing pollution, diseases and invasive species. To manage human impacts on Antarctic ecosystems, and to help with political negotiations, the Antarctic Treaty came into force on June 23, 1961.

The treaty regulates all activity south of 60°S and includes an [To enable links contact MENAFN] environmental protection protocol.

The impacts of global climate change and ocean acidification are nonetheless evident in the Southern Ocean, with warming ocean temperatures, reduction in sea ice and collapsing ice shelves.

Antarctic ocean waters are warming dramatically. Ceridwen Fraser, Author provided

Increasingly, research is showing that even the distant Southern Ocean is not truly cut off from the rest of the world, with [To enable links contact MENAFN] warming, [To enable links contact MENAFN] plastic pollution and non-native species making their way to Antarctic waters from beyond the mighty [To enable links contact MENAFN] polar front.

Southern bull kelp does not grow in the Antarctic, but it floats well and recent research has shown that it can drift to Antarctica, travelling tens of thousands of kilometres across the Southern Ocean. Author provided

Rafts of floating [To enable links contact MENAFN] seaweeds from outside the Antarctic, some carrying [To enable links contact MENAFN] animal passengers, are now able to cross the Southern Ocean and reach Antarctic shores. At the moment, they don't seem able to survive the extreme climate of Antarctica, but that could change with warming.

New species moving in and setting up shop will put a lot of pressure on Antarctica's unique plants and animals.

Adélie penguins rest and breed on land ice, but go to sea to forage for food. Michelle LaRue, Author provided

It's not all doom and gloom, though. Over the several decades since the Antarctic Treaty came into force, we've seen that nations can work together to help resolve challenges facing the Antarctic. One example is the establishment of Antarctic Marine Protected Areas ([To enable links contact MENAFN] MPAs).

This level of international cooperation should give us hope not just for the future of the Southern Ocean, but also for other key challenges the world faces.
