Flare Separator With A Capacity Of 90 Cubic Meters

(MENAFN- RCTT) OKB "Akademicheskoe" offers consumers a Flare separators with a capacity of 90 cubic meters, including the development of unique design documentation, production and supply of products for oil residue processing units under a manufacturing agreement and is looking for partners to conclude in a distribution services agreement. Description Flare condensate separators are used in the oil and gas industry to separate liquids (condensate) from gas streams in flare systems. These devices ensure efficient condensate removal, preventing it from entering the flare system and ensuring safe operation. Several leading manufacturers specialize in the production of these devices on the global market.
Major global manufacturers of flare condensate separators:
1. Schlumberger (USA
- Features: Schlumberger offers a wide range of equipment for the oil and gas industry, including separation systems for flare units.
2. Frames Group (Netherlands)
- Features: Frames Group develops and manufactures condensate collection and processing systems, including flare separators.
3. Pietro Fiorentini (Italy)
- Features: The company offers gas and liquid separation solutions, including flare separators for the oil and gas industry.
Flare separators are designed to collect condensate from emergency discharges from the delayed coking unit of oil residues.
Working medium - hydrocarbon condensate.
Working pressure - 0.1 MPa
Working medium temperature - 254 degrees.

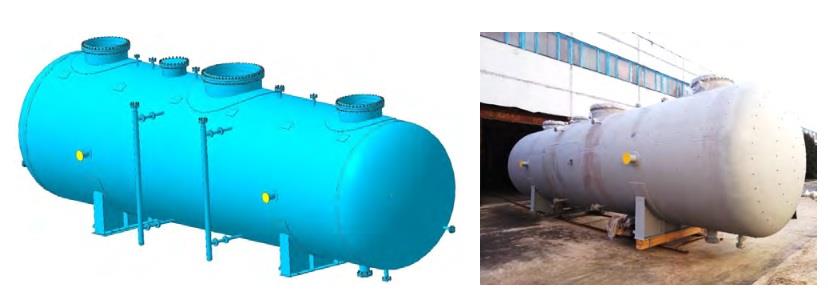

Volume - 90m3, Weight - 16100 kg. The separator is designed to collect condensate from emergency discharges from the delayed coking unit of oil residues. The separator is a horizontal cylindrical vessel consisting of a shell and two elliptical bottoms, installed on supports. The following are welded into the separator shell: gas inlet pipe (DN 1200 mm), gas outlet pipes (DN 900 mm), pump degassing pipe (DN 25 mm), condensate outlet pipe (DN 200 mm), drainage pipe (DN 80 mm), pressure meter pipe (DN 50 mm), pressure take-off pipe (DN 50 mm), nitrogen inlet pipe (DN 50 mm), level gauge pipes (DN 50 mm), manhole (DN 500 mm), air vent (DN 80 mm). A drainage pipe (DN 50 mm) is welded into the left bottom. A pipe for a thermocouple (DN 50 mm) is welded into the right bottom. Remote chambers of level gauges are provided for installation of level control devices. Slinging devices are welded to the separator, allowing slinging during loading, unloading and installation works. Grounding elements are welded to the separator supports. The separator body is heat-insulated during installation by the operating organization.
Information on flare separators is posted in the Album of promising developments of the NAS of Belarus organizations for the real sector of the economy (2023) p. 138. and the Catalogue "Brands of the NAS of Belarus 2021–2022: a list of the most important developments of the NAS of Belarus p. 99. (in Russian)
Additional information is available on the Academicheskoe Design Bureau website in the "Equipment for the Oil, Gas, and Chemical Industries" section here. (in Russian) Advantages and Innovations The achieved performance indicators correspond to world analogues, which is the basis for promoting flare separators to the markets of the Republic of Belarus and neighboring countries. Flare separators comply with the requirements of the technological regulations of the Customs Union TR CU 010/2011 "On the safety of machinery and equipment" and TR CU 032/2013 "On the safety of equipment operating under excess pressure".
The products have no competitors in the Republic of Belarus and the territories of the Union states. Stage of development Already on the market Funding source Internal
Investor
IPR status Exclusive rights
Secret know-how
Comments regarding IPS status The products are unique, and the design and operating documentation developed by the organization constitutes its intellectual property and is protected as a trade secret. Import-substituting products. Sector group Aeronautics, Space and Dual-Use Technologies
Intelligent Energy
Environment
Mobility
Client information Type R&D institution Year established 1973 NACE keywords C.25.29 - Manufacture of other tanks, reservoirs and containers of metal
C.25.30 - Manufacture of steam generators, except central heating hot water boilers
C.25.99 - Manufacture of other fabricated metal products n.e.c.
M.72.19 - Other research and experimental development on natural sciences and engineering
M.74.90 - Other professional, scientific and technical activities n.e.c.
Turnover (in EUR) 10-20M Already engaged in transnational cooperation Yes Additional comments OKB "Akademicheskoe" is one of the leading enterprises with extensive experience in the manufacture of import-substituting equipment in the chemical, oil and gas and nuclear engineering in the Republic of Belarus (licenses No. 02300 / 544-4 of the Department of Nuclear and Radiation Safety of the Ministry of Emergency Situations of the Republic of Belarus and licenses No. 02300 / 2449-1 of the State Industrial Supervision Service of the Ministry of Emergency Situations of the Republic of Belarus).
OKB "Akademicheskoe" is a leading enterprise in the nuclear engineering industry in the Republic of Belarus.
OKB "Akademicheskoe", at the current stage of its development, is a multi-industry design and production and research complex with a closed cycle, from the design of various types of products (tank equipment, tank equipment and process equipment based on them) to their manufacture and commissioning in the field of:
* science and scientific services (including in the field of nuclear energy);
* chemical apparatus engineering (for the oil and gas complex and chemical plants);
* power engineering (heat exchange equipment and process equipment with its use and the use of vessels operating under pressure);
* milk processing (UF, RO, CIP-washers, neutralization units, dispersants, emulsifiers, pumps of various types and purposes, etc.);
* water treatment (water filters of various types and capacities);
* alcohol production;
* pharmaceutical industry;
* airfield equipment, etc.
The enterprise is a supplier of equipment to the Russian State Corporation "ROSATOM" and currently equips power units of the Belarusian NPP with equipment.
The enterprise has the technological capabilities to perform various types of mechanical processing (turning, milling, grinding, jig boring, welding, rolling, bending, etc.), welding (products made of carbon, stainless steel, copper, aluminum and titanium alloys) and control of finished products (radiographic, ultrasonic and capillary flaw detection, hydraulic testing, as well as an implemented and operating quality management system for design and manufacturing that meets the requirements of STB ISO 9001-2015 (certificate of conformity No. BY / 112 05.01.031 until 02.10.2020).
The enterprise offers mutually beneficial cooperation in the development and joint manufacture of equipment, cooperation, with the supply of manufactured equipment to enterprises in the countries of the Eurasian Economic Union and other countries.
Official website of the OKB "Akademicheskoe"". Certification standards The design and manufacturing quality management system complies with the requirements of STB ISO 9001-2009 (Certificate of Conformity No. BY/112 05.01.031). Languages spoken English
Russian
Information about partnership Type of partnership considered Distribution services agreement
Manufacturing agreement
Type and role of partner sought Customers interested in purchasing a Flare separators for oil residue processing units, including development of unique design documentation, production and supply of products under a manufacturing agreement.
Partners interested in purchasing a Flare separators for oil residue processing units, including development of unique design documentation, production and supply of products under a distribution services agreement. Type and size of partner sought > 500
